Chongqing Great Well Magnet Co. , Ltd.
| Plaats van herkomst: | China |
|---|---|
| Certificering: | ISO9001:2008, ROHS, REACH |
| Modelnummer: | N35-G96 |
| Min. bestelaantal: | 100 |
| Prijs: | USD1.00~1.50/pc |
| Verpakking Details: | Pallet met karton |
| Levertijd: | 2~4weeks |
| Betalingscondities: | L/C, T/T |
| Vorm: | Het boog-segment, Pot/Kopvorm, cilinder, schijf, paste aan, | Toepassing: | Industriële Magneet, Motor, Magnetische Separators, Generator |
|---|---|---|---|
| Samengesteld: | Neodymiummagneet, NdFeB-Magneet, Zeldzame aardemagneet | Type: | De magneet van de permanente, Neodymiumpot |
| Deklaag: | Nikkel, Zn, Ni-Cu-Ni, Ni, Epoxy | Materiaal: | Gesinterd neodymium-ijzer-Borium, het Borium van het Neodymiumijzer, Neodymiummagneet, Permanente ma |
| Markeren: | N35 de Magneten van de Neodymiumboog,De gesinterde Magneten van de Neodymiumboog,Het segmentmagneten van de NdFeBboog |
||

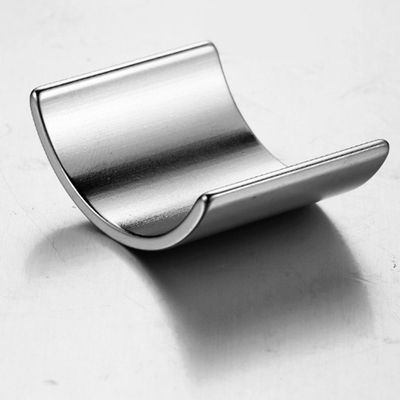

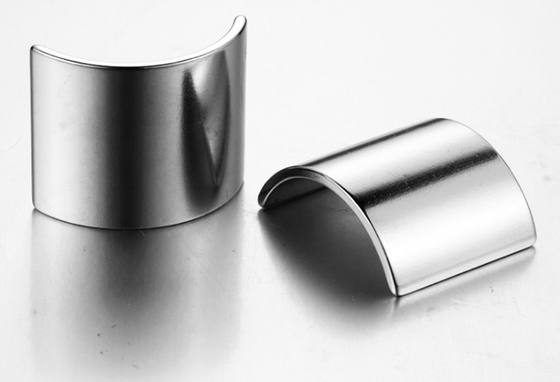

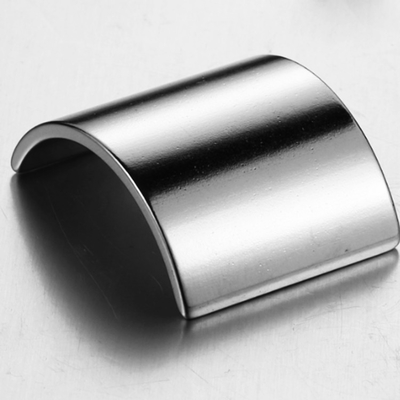

Het boog-Segment van neodymiummagneet Gesinterde NdFeb Magneet voor Motor N35
BESCHRIJVING VAN PRODUCTEN
De gesinterde NdFeB-magneten zijn de krachtigste op de markt gebrachte permanente magneten vandaag beschikbaar, met maximumenergieproduct die zich van 26 MGOe uitstrekken aan 55 MGOe. Nd-Fe-B is de derde generatie van permanente die magneet in de jaren '80 wordt ontwikkeld. Het heeft een combinatie van zeer hoge remanence en coercivity, en komt met een brede waaier van rangen, grootte en vormen. Met zijn uitstekende magnetische kenmerken, overvloedige grondstof en vrij lage prijzen, biedt Nd-Fe-B meer flexibiliteit in het ontwerpen van nieuw aan of vervangt de traditionele magneetmaterialen zoals ceramisch, Alnico en sm-Co om hoog rendement, lage kosten en compactere apparaten te bereiken.
Magnetische Eigenschappen van Gesinterde NdFeB-Magneten
| Punt | Rang | Remanence; | Coercivity; | Coercivitykracht; | Het maximum Product van BH; | Het werken | ||||||||
| Br | HcB | HcJ | (BH) maximum | Temperaturen. | ||||||||||
| Kg | T | KOe | KA/m | KOe | KA/m | MGOe | KJ/m | °C | ||||||
| Max. | Min. | Max. | Min. | Maximum | Min. | Max. | Min. | |||||||
| N | N40 | 13.2 | 12.6 | 1.32 | 1.26 | ≥10.5 | ≥836 | >=12 | >=954 | 42 | 38 | 334 | 289 | ≤80 |
| N42 | 13.5 | 12.9 | 1.35 | 1.3 | ≥10.5 | ≥836 | >=12 | >=954 | 44 | 40 | 350 | 318 | ≤80 | |
| N45 | 13.8 | 13.2 | 1.38 | 1.32 | ≥10.5 | ≥836 | >=12 | >=954 | 46 | 42 | 366 | 334 | ≤80 | |
| N48 | 14.2 | 13.7 | 1.43 | 1.37 | ≥10.5 | ≥836 | >=11 | >=876 | 49 | 45 | 390 | 358 | ≤80 | |
| N50 | 14.5 | 14.0 | 1.45 | 1.4 | ≥10.5 | ≥836 | >=11 | >=876 | 51 | 47 | 406 | 374 | <> | |
| N52 | 14.8 | 14.4 | 1.48 | 1.44 | ≥10.5 | >=836 | >=11 | >=876 | 53 | 49 | 422 | 390 | <> | |
| N55 | 1.52 | 14.6 | 1.52 | 1.46 | ≥9.0 | >=716 | ≥11.0 | >=876 | 56 | 52 | 446 | 414 | <> | |
| M | N38M | 12.8 | 12.3 | 1.3 | 1.23 | ≥11.6 | >=915 | >=14 | >=1114 | 40 | 36 | 318 | 287 | <> |
| N40M | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | >=939 | >=14 | >=1114 | 42 | 38 | 334 | 289 | <> | |
| N42M | 13.5 | 12.9 | 1.35 | 1.3 | ≥12.0 | >=955 | >=14 | >=1114 | 44 | 40 | 350 | 318 | <> | |
| N45M | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.5 | >=994 | >=14 | >=1114 | 46 | 42 | 366 | 334 | <> | |
| N48M | 14.2 | 13.7 | 1.42 | 1.37 | ≥12.8 | >=1018 | >=14 | >=1114 | 49 | 45 | 390 | 358 | <> | |
| N50M | 14.5 | 14 | 1.45 | 1.4 | ≥13.1 | >=1042 | >=11 | >=1114 | 51 | 47 | 406 | 374 | <> | |
| H | N35H | 12.5 | 11.8 | 1.25 | 1.18 | ≥11.0 | >=875 | >=17 | >=1353 | 37 | 33 | 295 | 263 | <> |
| N38H | 12.8 | 12.3 | 1.3 | 1.23 | ≥11.6 | >=915 | >=17 | >=1353 | 40 | 36 | 318 | 287 | <> | |
| N41H | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | >=939 | >=17 | >=1274 | 42 | 38 | 334 | 302 | <> | |
| N44H | 13.7 | 13 | 1.37 | 1.3 | ≥12.1 | >=963 | >=16 | >=1274 | 45 | 41 | 358 | 326 | <> | |
| N46H | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.2 | >=971 | >=16 | >=1274 | 47 | 43 | 374 | 342 | <> | |
| N48H | 14.2 | 13.7 | 1.42 | 1.37 | ≥12.7 | >=1011 | >=16 | >=1274 | 49 | 45 | 390 | 358 | <> | |
| VERPAKKEN EN VERZENDEN | N35SH | 12.5 | 11.8 | 1.25 | 1.18 | ≥11.0 | >=876 | >=20 | >=1592 | 37 | 33 | 295 | 263 | <> |
| N39SH | 13 | 12.3 | 1.3 | 1.23 | ≥11.6 | >=923 | >=20 | >=1592 | 40 | 36 | 318 | 287 | <> | |
| N42SH | 13.2 | 12.9 | 1.32 | 1.26 | >=11.8 | >=939 | >=20 | >=1592 | 42 | 38 | 334 | 302 | <> | |
| N44SH | 13.7 | 13 | 1.37 | 1.3 | >=12.1 | >=963 | >=20 | >=1592 | 45 | 41 | 358 | 326 | <> | |
| N46SH | 13.8 | 13.4 | 1.38 | 1.34 | >=12.5 | >=965 | >=20 | >=1592 | 47 | 43 | 374 | 342 | <> | |
| UH | N33UH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=25 | >=1990 | 35 | 31 | 279 | 2247 | <> |
| N35UH | 12.5 | 11.8 | 1.25 | 1.18 | >=11.0 | >=875 | >=25 | >=1990 | 37 | 33 | 295 | 263 | <> | |
| N38UH | 13 | 12.3 | 1.3 | 1.23 | >=11.6 | >=915 | >=25 | >=1990 | 40 | 36 | 318 | 287 | <> | |
| N40UH | 13.2 | 12.6 | 1.32 | 1.26 | >=10.5 | >=836 | >=25 | >=1990 | 42 | 38 | 334 | 289 | <> | |
| EH | N30EH | 11.7 | 10.9 | 1.17 | 1.09 | >=10.2 | >=812 | >=30 | >=2388 | 32 | 28 | 255 | 223 | <> |
| N33EH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=30 | >=2388 | 35 | 31 | 279 | 2247 | <> | |
| N35EH | 12.5 | 11.8 | 1.25 | 1.18 | >=11.0 | >=875 | >=30 | >=2388 | 37 | 33 | 295 | 263 | <> | |
| N38EH | 13 | 12.2 | 1.3 | 1.22 | >=11.5 | >=915 | >=30 | >=2387 | 40 | 36 | 318 | 287 | <> | |
| AH | N28AH | 11 | 10.4 | 1.1 | 1.04 | >=9.70 | >=772 | >=35 | >=2786 | 29 | 26 | 231 | 207 | <> |
| N30AH | 11.7 | 10.8 | 1.17 | 1.08 | >=10.2 | >=812 | >=35 | >=2786 | 32 | 28 | 255 | 223 | <> | |
| N33AH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=35 | >=2786 | 35 | 31 | 279 | 247 | <> | |
| N35AH | 12.5 | 11.7 | 1.25 | 1.17 | >=11.0 | >=876 | >=35 | >=2386 | 37 | 33 | 295 | 263 | <> | |
De Grafiek van de productiestroom
Toepassing
