Yxg28 Yxg30 Smco Ring Magnets, Mini Ring Motor Stator Magnet
Key Attributes
Product Summary
Yxg28 Yxg30 Smco Mini Ring Stator Magnet For Motor Toepassing De sterkste die magneet was de magneet van het samariumkobalt in Europa en Amerika wordt ontwikkeld. Nu worden beide magneten gebruikt als delen van kleine motoren of luidsprekers. De reden waarom vele machines kunnen worden verkleind kan ...
Product Details
de magneten van de smcoring
,De ringsmagneten van Yxg30smco
,de magneet van de smcostator

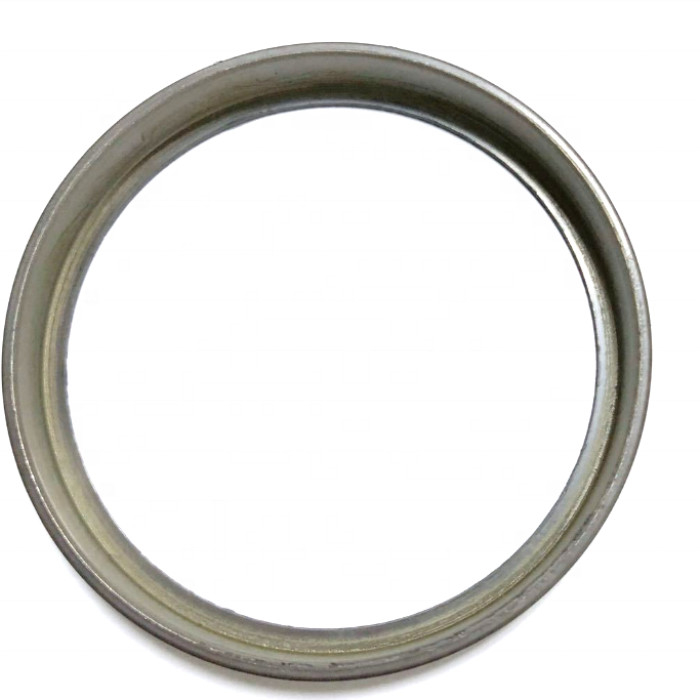

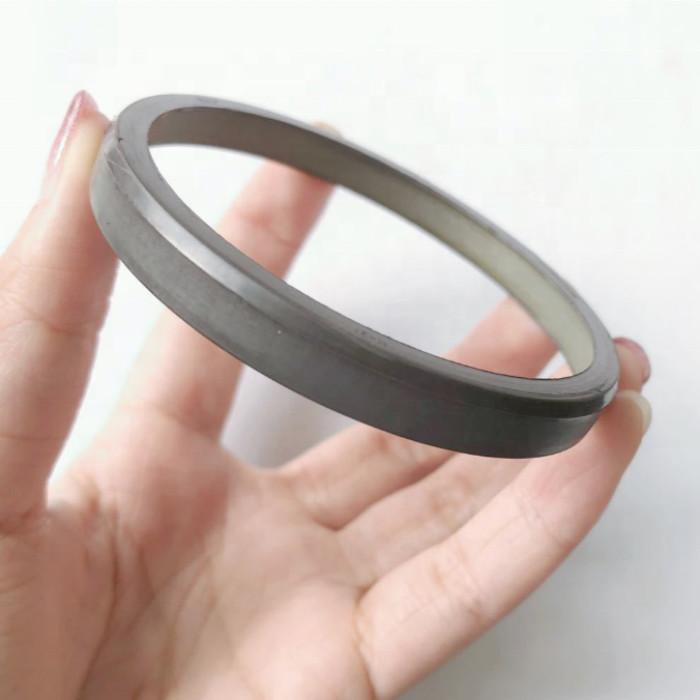

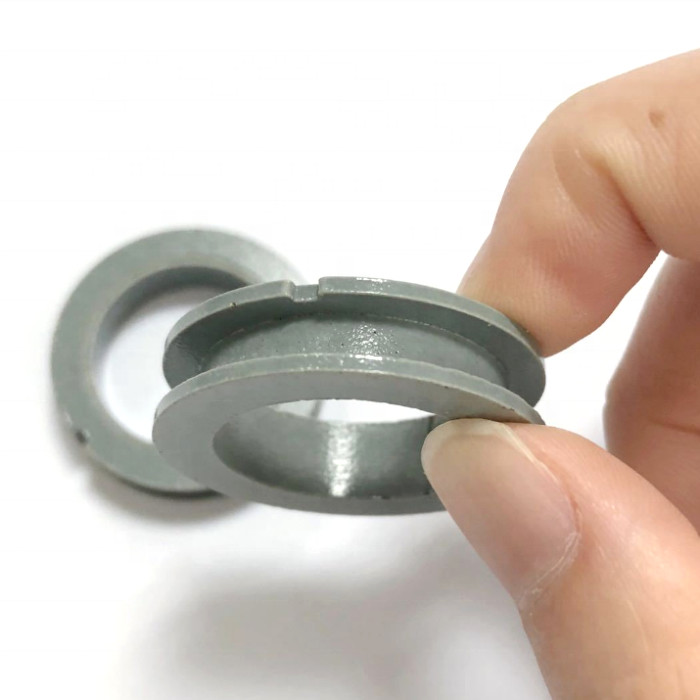

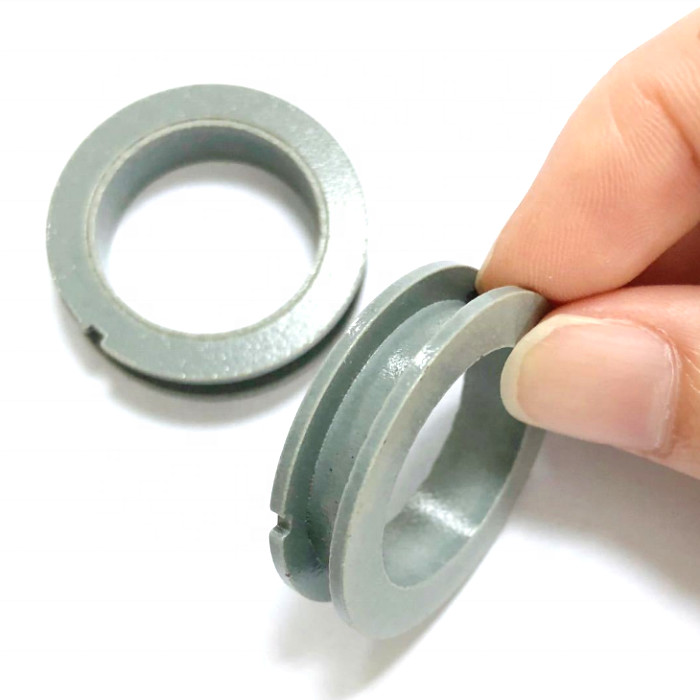

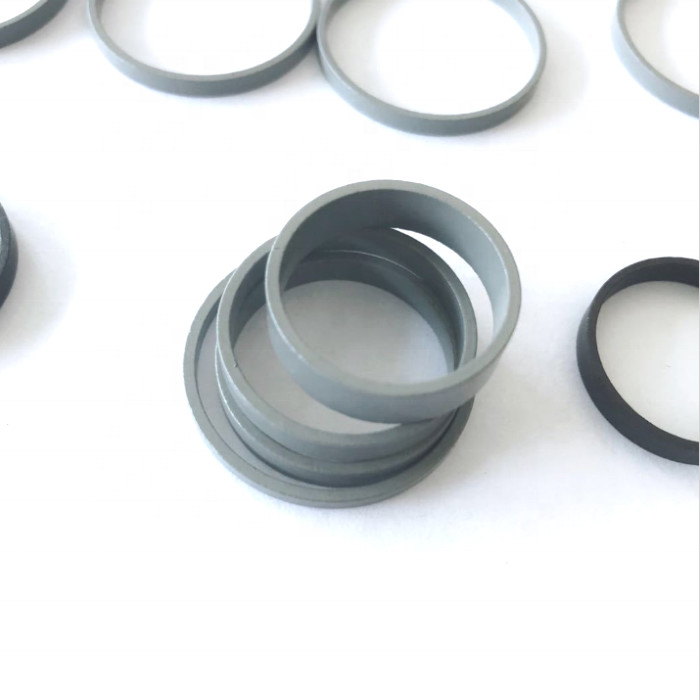

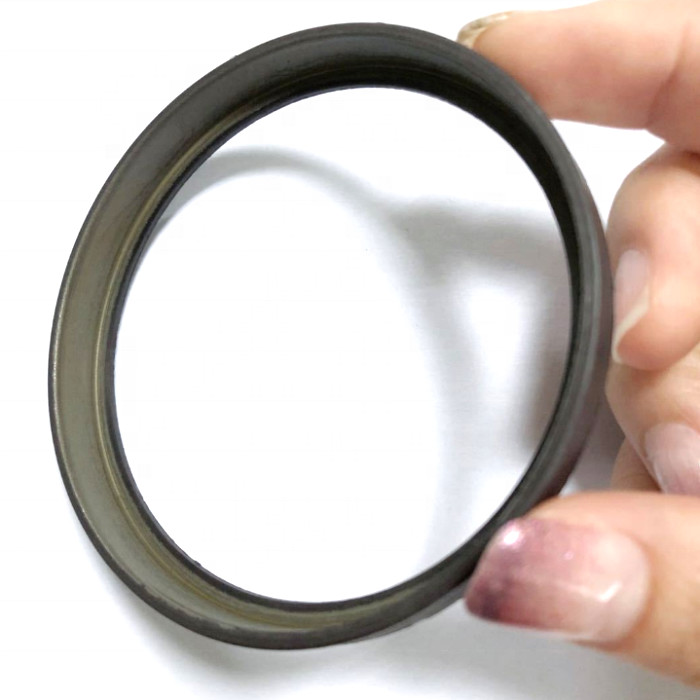

Yxg28 Yxg30 Smco Mini Ring Stator Magnet For Motor
Toepassing
De sterkste die magneet was de magneet van het samariumkobalt in Europa en Amerika wordt ontwikkeld. Nu worden beide magneten gebruikt als delen van kleine motoren of luidsprekers. De reden waarom vele machines kunnen worden verkleind kan ook aan de kleine en krachtige magneten worden toegeschreven. Het is een zeldzame aarde permanente magneet met sterke corrosieweerstand en oxydatieweerstand. wegens de hoge prijs van materialen, is zijn ontwikkeling beperkt. Het wordt hoofdzakelijk gebruikt in ruimtevaart, nationale defensie en de militaire industrie, microgolfapparaten, mededeling, medische apparatuur, instrumenten, meters, diverse magnetische transmissieapparaten, magnetische bewerkers, sensoren, motoren, magnetische kranen, enz.
|
Productnaam
|
Yxg28 Yxg30 Smco Mini Ring Stator Magnet For Motor
|
|
Productmaterialen
|
De Magneet van het samariumkobalt
|
|
Productmaterialen
|
Het borium van het neodymiumijzer, Neomagneet, Nd-Magneet, Zeldzame aardemagneet
|
|
Grootte van de producten
|
Keur Aangepast goed
|
|
Het werk Temperaturen
|
350°C
|
|
Magnetische richting
|
Door dikterichting, is de vlakke oppervlakte magnetisch veld.
|
|
Verticale trekkrachtkracht
|
kan op metaalraad trekken meer dan het document van 19pieces A4
|
|
Testmethode
|
het hand testen
|
|
Toepassing
|
Servomotor, Brushless motor, Lineaire Motor, Automobielmotor, de motor van HEV& EV, Robot Drijfmotor, de Motor van de Omschakelaarscompressor, Spoor
|
Specificatie
| Rang | Max. Energieproduct | Remanence | Dwangkracht | Toer Temp. Coëfficiënten. | Het werk Temperaturen. | Dichtheid | ||||||
| (BH) maximum | Br | Hc | Hci | BD | Hd | Tw | D | |||||
| MGOe | kJ/m3 | kg | MT | kOe | kA/m | kOe | kA/m | %/°C | %/°C | °C | g/cm3 | |
| SmCo5 16A | 16 | 130 | 8.2 | 820 | 7.5 | 600 | >16.0 | >1270 | -0.05 | 0,25 | 250 | 8.4 |
| SmCo5 16B | 16 | 130 | 8.2 | 820 | 7.5 | 600 | >20.0 | >1590 | -0.05 | 0,25 | 250 | 8.4 |
| SmCo5 18A | 18 | 146.3 | 8.7 | 870 | 8.2 | 656 | >16.0 | >1272 | -0.05 | 0,25 | 250 | 8.4 |
| SmCo5 18B | 18 | 146.3 | 8.7 | 870 | 8.2 | 656 | >20.0 | >1590 | -0.05 | 0,25 | 250 | 8.4 |
| SmCo5 20A | 20 | 162.5 | 9 | 900 | 8.6 | 690 | >16.0 | >1272 | -0.05 | 0,25 | 250 | 8.4 |
| SmCo5 20B | 20 | 162.5 | 9 | 900 | 8.6 | 690 | >20.0 | >1590 | -0.05 | 0,25 | 250 | 8.4 |
| SmCo5 22A | 22 | 178.8 | 9.5 | 950 | 9.1 | 728 | >16.0 | >1272 | -0.05 | 0,25 | 250 | 8.4 |
| SmCo5 22B | 22 | 178.8 | 9.5 | 950 | 9.1 | 728 | >20.0 | >1590 | -0.05 | 0,25 | 250 | 8.4 |
| Sm2 Co17 24 | 24 | 195 | 10 | 1000 | 9.5 | 760 | >20.0 | >1590 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co17 26A | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >16.0 | >1272 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co17 26B | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >20.0 | >1590 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co17 26H | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >26.0 | >2067 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co1728 A | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >16.0 | >1272 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co17 28B | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >20.0 | >1590 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co17 28H | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >26.0 | >2067 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co17 30A | 30 | 243.8 | 11 | 1100 | 10.2 | 816 | >16.0 | >1272 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co17 30B | 30 | 243.8 | 11.2 | 1120 | 10.2 | 816 | >20.0 | >1590 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co17 32 | 31 | 251.8 | 11.5 | 1150 | 10 | 800 | >15.0 | >1192 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2 Co17 25H | 25 | 203.2 | 10.5 | 1050 | 9.7 | 776 | >35.0 | >2782 | -0.03 | 0,23 | 375 | 8.3 |
